Lighter Always with You

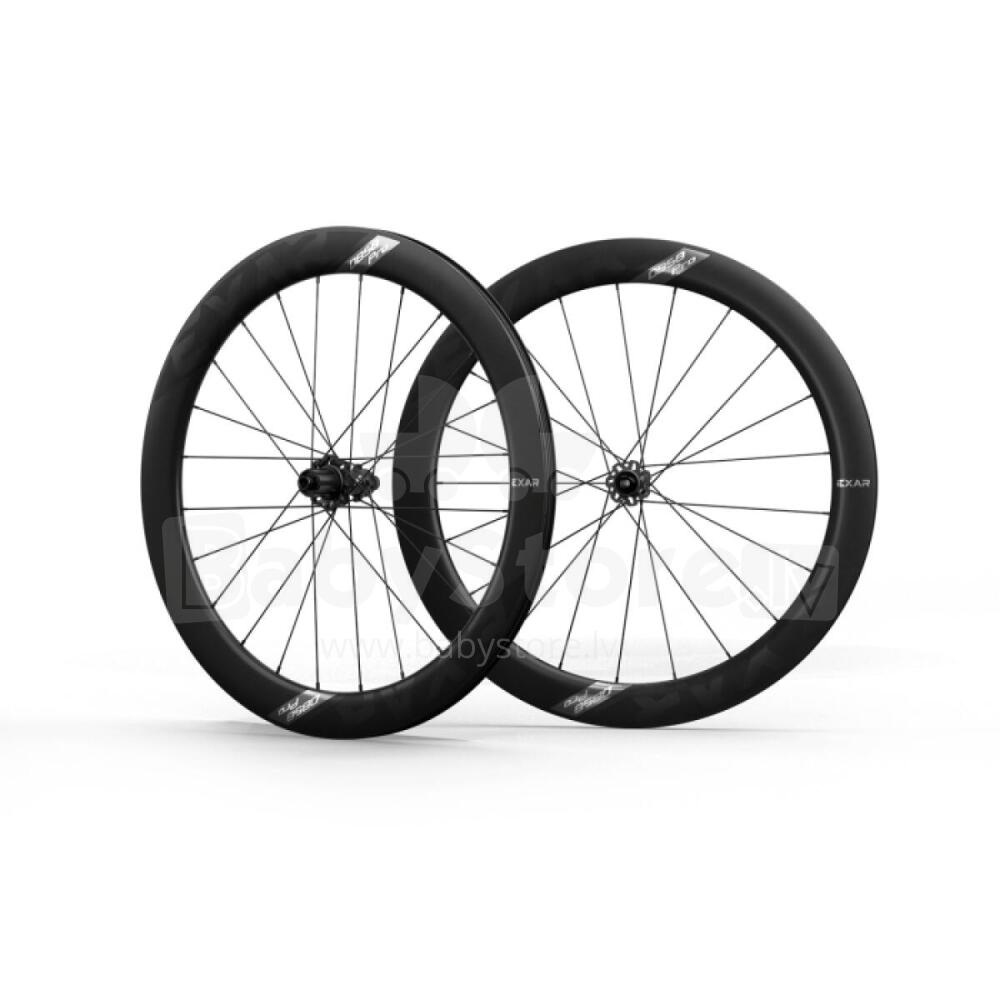

EXAR Pro series rims are made of HI-MOD carbon fiber. While keeping the rim, spoke and hub stiff, we optimized materials and structure to reduce overall weight. The light design effectively reduces driving weight and improves sprinting performance.
Automatic carbon fiber winding technology is applied, therefore, the carbon fiber is prestressed and is more straight and evenly forced. The stiffness and consistency of wheelset are ensured.
*The wheelset weight does not include the weight of quick-release bar and rim tape; A tolerance of ±3% applies to the weight, and the actual wheelset weight should prevail.
Wider for Better Aerodynamics
Pro series wheelsets have an external width of 27mm and an internal width of 20mm.The rear wheel of the rim brake model is designed with an external width of 26mm and an internal width of 19.5mm for better compatibility with the caliper brake.The 27mm wide rim provides a flatter aerodynamic surface with 25c and 28c outer tires and thus reducing air resistance.
Specifications
| Brake type | Disc Brake |
|---|---|
| Frame Height | 45mm |
| Weight | 410g |
| External width | 27mm |
| Internal width | 20mm |
| Rim Material | HI-MOD carbon fiber |
| Brake | Center lock disc brake |
| Spoke Type | pillar wing21 |
| Ratchet | 36T (Compatible with DT system. Replaceable with different tooth amount DT ratchet) |
| Front Wheel Spoke Tension | 100kgf±10% |
| Rear Wheel Spoke Tension | Drive side 120kgf±10% Non-drive side 110kgf±10% |
| Front Wheel Spoke Lacing | 21H, 2:1, brake side×2, non-brake side radial lacing |
| Rear Wheel Spoke Lacing | 24H, 2:1, drive side×2, brake side×2 |
| Rim Type | Asymmetric |
| Frame Spacing | 100/142mm thru-axle (100/135mm quick release available separately) |
| Freehub | Standard SHIMANO 11-speed (Campagnolo N3W and Sram XDR freehubs are available separately) |
| Compatible Cassette | Shimano 8-12s, Sram 8-12s (require separate XDR freehub for 12s), Campagnolo 8-13s (require separate N3W freehub) |
| Compatible Tire Type | Clincher tire, tubeless tire |
| Compatible Tire Width | Compatible with 25c tire and above Suggested tire width is 28c-32c |
| Maximum Tire Pressure | Tubeless tire: 100psi for 28c, 90psi for 30c, 80psi for 32c |
Parametri:
| Piegādes izmērs, m (Garums x Platums x Augstums) | 1.42 x 0.027 x 0.045 |
|---|---|
| Piegādes svars, kg | 1.411 |
| Veikals | Izmērs | Daudzums | |
|---|---|---|---|
| Noliktavā (5-7 darba dienas) | 32 gab. |
