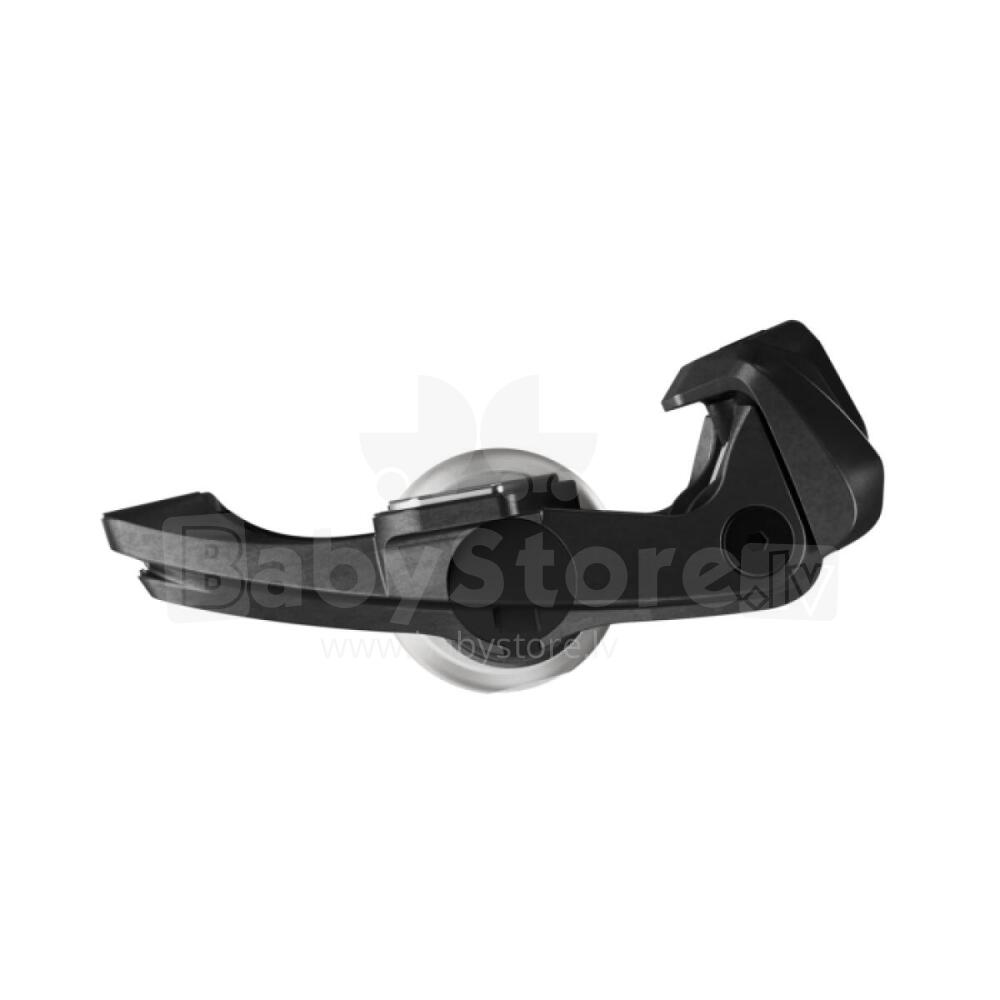

MAGENE Power meeter pedal P715K (KEO Cleats)

Dual-Sided Power Meter Pedals:

With Embedded Power meter spindles, the power meter module is closer to where you output the watts, reducing loss & errors during transmission. P715 pedal-based power meter measures dual-side power simultaneously, providing you with direct & authentic data on each leg.

 Embedded Gyroscope:

Depending on your pedalling habits, your pedalling speed will be very different at every angle & second. The gyroscope can measure the real-time angular velocity & accurately calculate the instantaneous power at each angle, greatly improving the power accuracy during unstable riding.

 Temperature Compensation:

Changes in altitude & temperature can affect strain gauge, which will in turn affect power accuracy. To eliminate this effect, temperature compensation is introduced. The power algorithm adjusts according to altitude & temperature, providing consistent & accurate data.

Advanced Training functions:

The secret to elevate cycling ability in not only power. Besides regular power & cadence data, P715 provides more advanced cycling data to help you understand your pedal status & riding ability.

• Power Phase: Learn your power generation zone, force angle, peak region of work, so as to optimise your watts zone & distribute power optimally.
• Riding Position: Learn power output at different postures. Therefore you can adopt different postures & improve pedalling efficiency during different situations.
• Left & Right Balance: Know the difference between your left leg & right leg output, so as to enhance training of the weaker leg.
• Torque effectiveness: Learn your pedalling pattern & how much power is effective in pushing you forward, helping you improve pedalling effectiveness.
• Pedalling smoothness: Analyse how even your watts output is throughout pedalling cycles.

 Lightweight:

MAGENE P715K Power meter Pedals are made from composite carbon fibre and the spindle utilises precipitation hardening stainless steel. Reducing the pedal weight to the extreme whilst maintaining stiffness.

• ±1% Precise Power accuracy
• 120h battery life
• 7 Advanced training functions
• Optimised for KEO cleat (not included)
• 157g (each pedal)
• Bluetooth & Ant+
• IPX7 Waterproof rating
• Automatic calibration
• Magnetic charging (charge lead included)
• Cadence range: 20~240rpm
• Power range: 0~2500w
• Working temperature: -20~50°C
• Q-Factor: 55mm
• Stack height: 11mm

What's in the box?

• Power meter pedal x2
• Crank washer x2
• Charging cable x1
• Quick start guide x1
