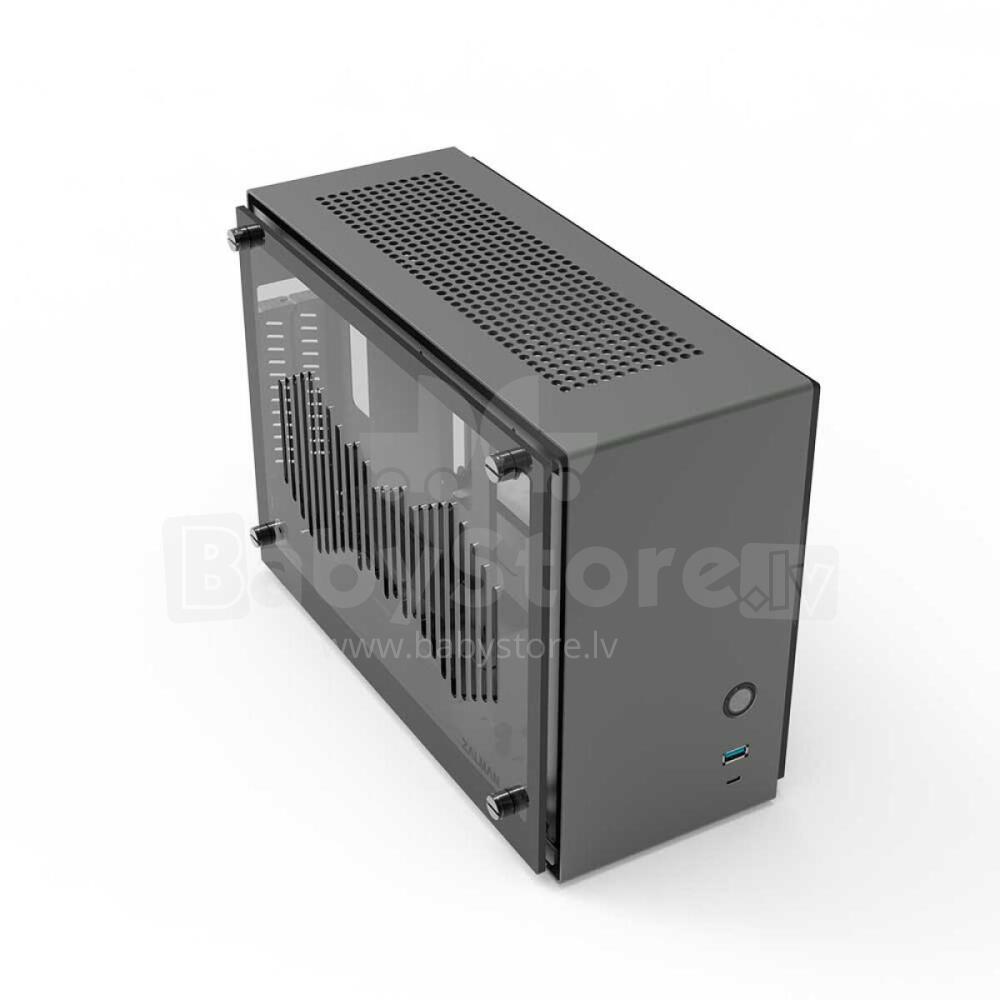

Zalman M2 Mini ITX Gray

M2 Mini-Gray
Aluminium/Steel
Mini-ITX Case

Luxurious Esthetic
328(D) x 150(W) x 235(H) mm
2.8 kg

Sophisticated Aluminium Processing
CNC Digital Cutting / Edge Rounding cutoff.

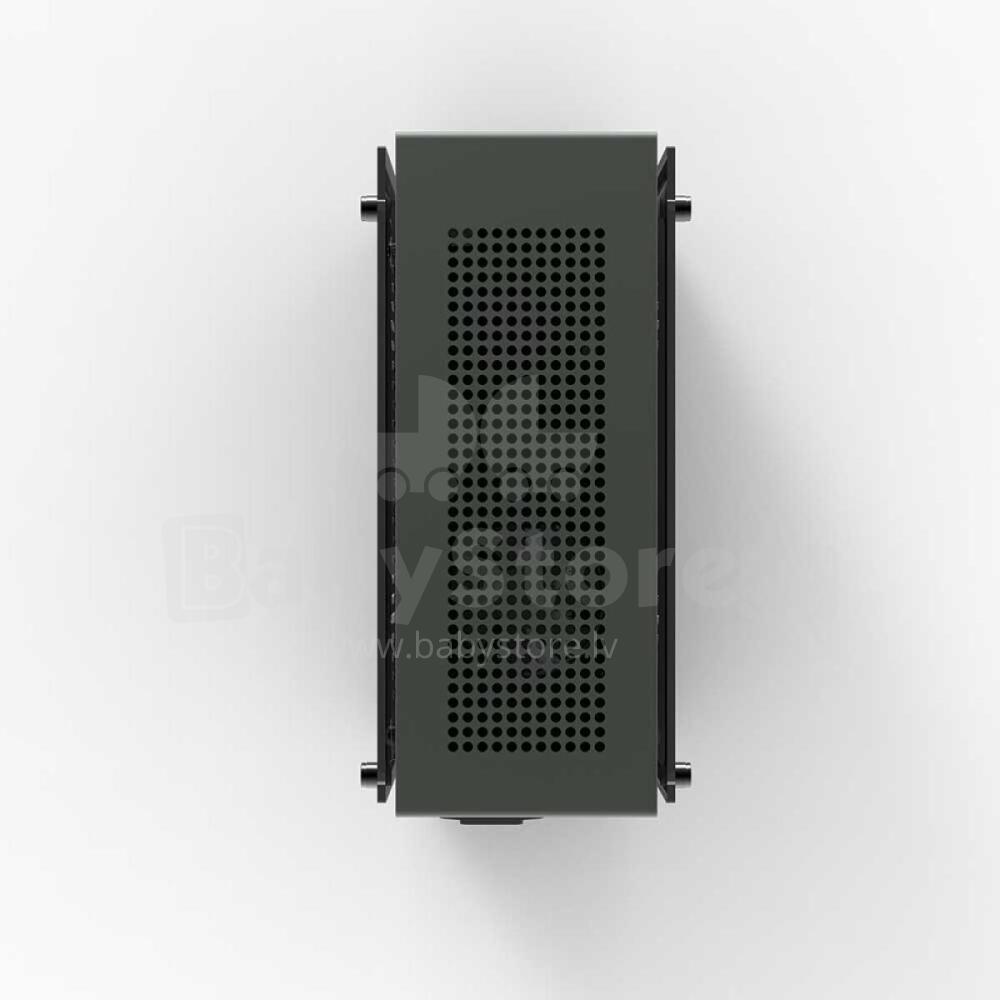

Efficient Cooling Design
Optimized airflow through the top and ventilated acrylic panels.

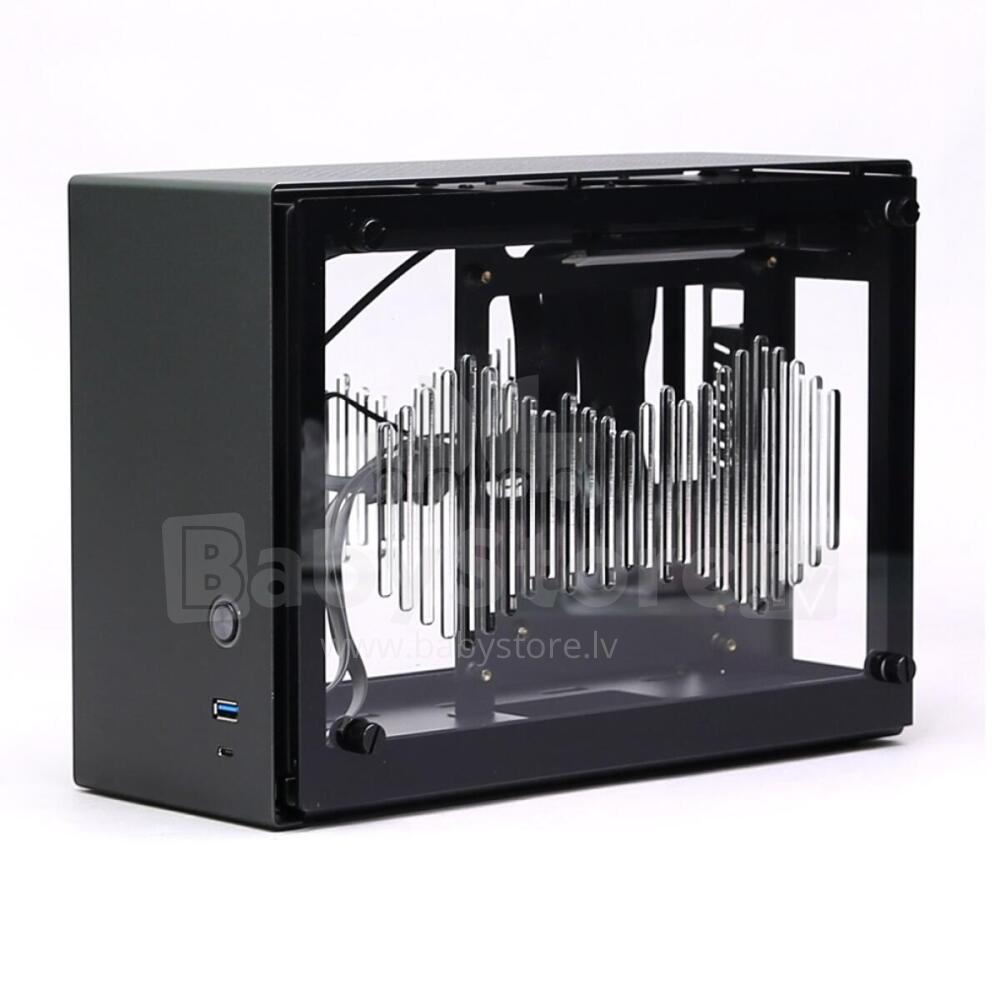

Dual-Sided Premium Acryl Panels
Premium 4T-thick acryl provides strong interior protection while the perforation offers smooth air ventilation. Easy to use side panels with thumb screws.

Smart I/O Port
- Power Button
- USB 3.0 Port
- USB 3.1 Gen2 Type-C

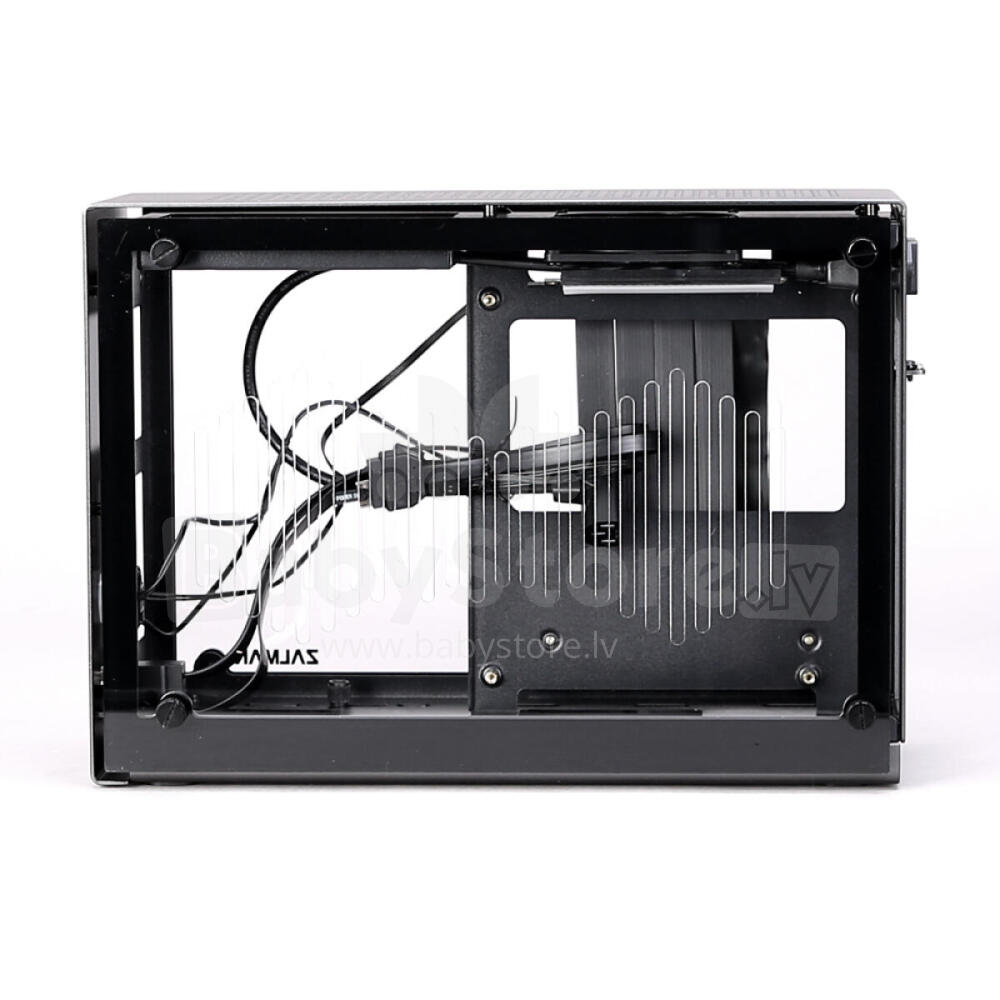

Pre-Installed PCIe3.0 Riser Cable
- Connecter fits most mounts and cases
- Slide type PCI-e holding tap
- Electromagnetic interference (EMI) shielding ensures maximum performance
- 24K-Gold plated contacts for best connectivity and long life
- PCB protector included
- Five-wire banded construction allows for full flexibility

Specifications
Model: M2 mini
Case Form Factor: Mini-ITX Case
Dimension: 328(D) x 150(W) x 235(H)mm
Weight: 2.8kg
Materials: Aluminum, Steel, Acrylic
Motherboard Support: Mini-ITX
Maximum VGA Length: 295mm
Maximum CPU Cooler Height: 60mm
Maximum PSU Length: SFX, SFX-L

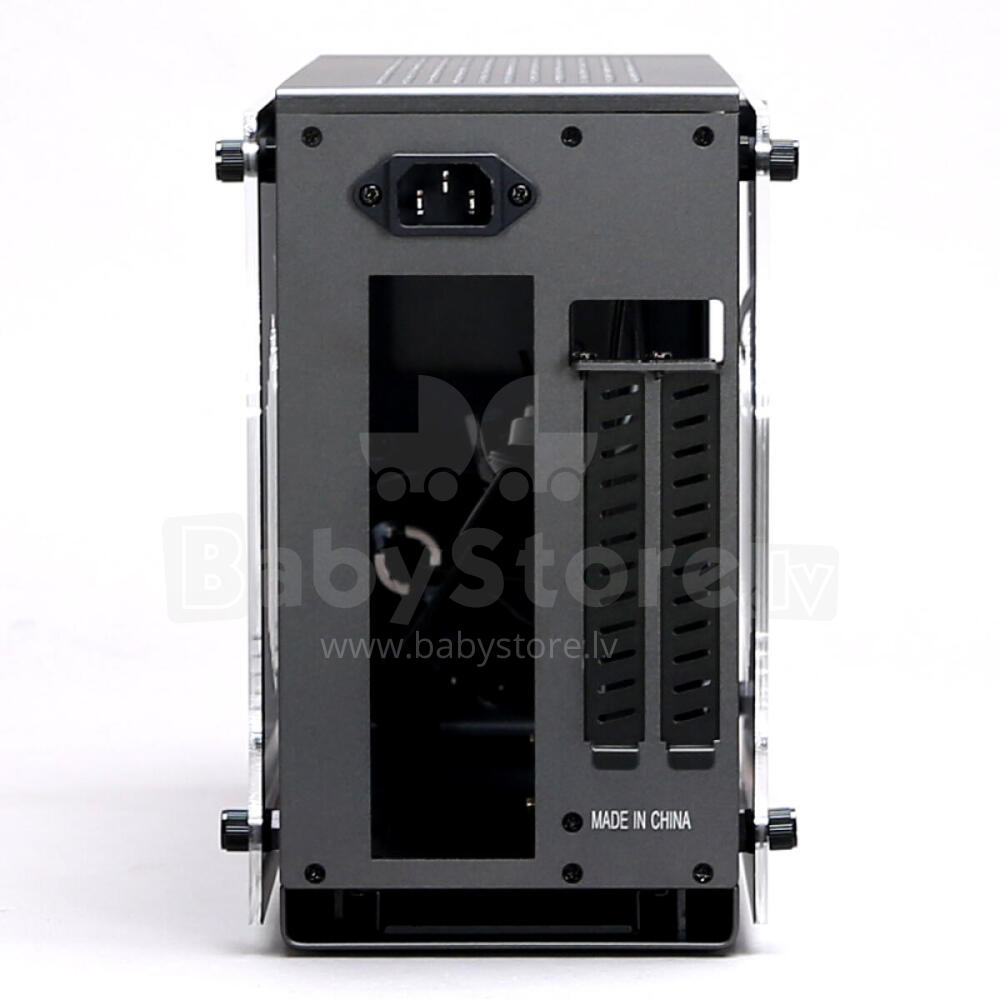

PCI Expansion Slots: 2
Drive Bays: SSD/ HDD 2 x 2.5"
Fan Support Top: 1 x 80mm
Fan(s) Included Top: 1 x 80mm
Radiator Support: -
I/O Ports: 1 x USB3.0, 1 x USB3.1 Gen2 Type-C, Power Button(LED)
Productcode: M2 Mini-Gray

Design
Form factor:	Mini Tower
Type:	PC
Colour of product:	Grey
Supported motherboard form factors:	Mini-ITX
Material:	Acrylic, Aluminium, Steel
Number of expansion slots:	2
Side window:	Y
Number of storage drives supported:	2
Number of 2.5" bays:	2
Tempered glass panel(s):	N
On/off button:	Y
LED indicators:	Power
Suitable for:	Gaming
Reset button:	N
Maximum CPU cooler height:	6 cm
Maximum graphics card length:	29.5 cm
Transport wheels:	N
RGB control button:	N
Maximum PSU length:	13 cm
Power supply
Power supply included:	N
Power supply location:	Front
Barošanas avotu skaits:	1
Supported power supply form factors:	SFX
Ports & interfaces
USB 3.1 (3.1 Gen 2) Type-C ports quantity:	1
Audio input:	N
Audio output:	N
Cooling
Maximum top fans:	1
Top fans installed:	1x 80 mm
Top fans diameters supported:	80 mm
Storage
Supported hard disk drive sizes:	2.5"
Number of HDDs supported:	2
SSD form factor:	2.5"
HDD/SSD combo cage:	Y
Weight & dimensions
Width:	150 mm
Depth:	328 mm
Height:	235 mm
Weight:	3.1 kg
Packaging data
Cables included:	PCIe
Other features
I/O ports:	1 x USB3.0, 1 x USB3.1 Gen2 Type-C, Power Button(LED)
